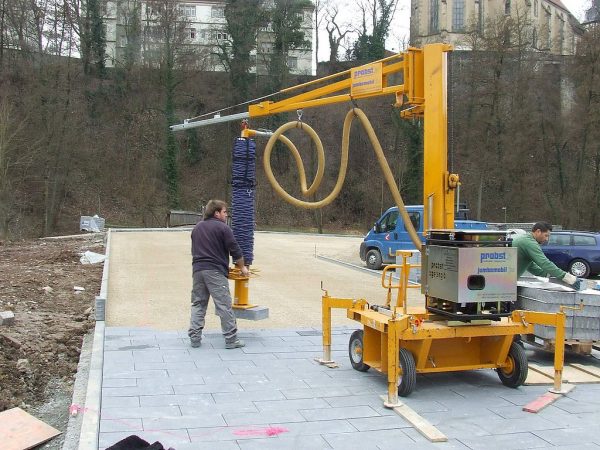

JUMBOMOBIL JM-VARIO Vacuum Slab Laying Machine
The classic, successful design, on the market for over 20 years!
All-rounder for slab laying.
New: Now with innovative knuckle boom jib!
- Can easily lay up to 400 square metres a day
- Newly laid, topping slabs that have not been compacted and are not moved when the JM travels over them
- Compact transport dimensions, yet a large operating range of 4 m
- Vacuum turbines powered either electrically or by petrol engine
- With knuckle boom for safe and quick installation even along house walls or around trees, light posts or similar
- Highest Safety Standards: The SAFESTOP ensures that the knuckle boom jib cannot swing into the traffic area
Types:
JM-VARIO-150-E:
Operating Radius: 3.900 mm
Dead Weight: 150 kg
JM-VARIO-200-E:
Operating Radius: 3.000 mm
Dead Weight: 200 kg
JM-VARIO-150-B:
Operating Radius: 3.900 mm
Dead Weight: 150 kg
JM-VARIO-200-B:
Operating Radius: 3.000 mm
Dead Weight: 200 kg
Product description
Technical Data and Components:
Chassis
Rugged undercarriage (LxW = 1,300 mm x 1,300 mm), 1steering axle, 1axle with hand brake, 4 pneumatic heavy duty wheels, compartments for counter weights, foldable supports.
Swing Crane
Telescopic in height via a hand operated winch (alternatively electrical driven), crane jib 4 m in length and able to turn 350° with 4 different stopping points.
Foldable down to 2 m in length and 2 m in height for easy transport.
Vacuum turbine unit VGE
elektrically driven (e)
Powerfull vacuum turbine with 3-phase elektrical motor, maximum underpressure 520 mbar, inkl. motor protection switch, plug CEKON 32 A with integrated phase-switch, silencer, air-filter with pre-separator.
Type VGE-SB-L-e (details see page 2.22)
Perol driven (b)
Powerfull vacuum turbine with integrated petrol engine, silencer, service hourmeter, airfilter with pre-separator.
Type VGE-3 RG b including conversion kit (details see page 2.22)
On request also available with elektrical start.
Vakuum Hose Lifter
Supply hose, lifting unit, operating valve unit, hose-cylinder extension. Lifting height -250 mm (below ground level) to +1,2500 mm.
Suction Plate
ESP 150-31/31 (see page 2.18)
Other suction plates on request.
All components are exchangeable via quick fasteners.
